  Ruggedized Switches and Routers



RAD’s ruggedized switches and routers feature SCADA-Aware, multiservice support for IoT backhaul and cyber security to connect remote locations over fiber and LTE.

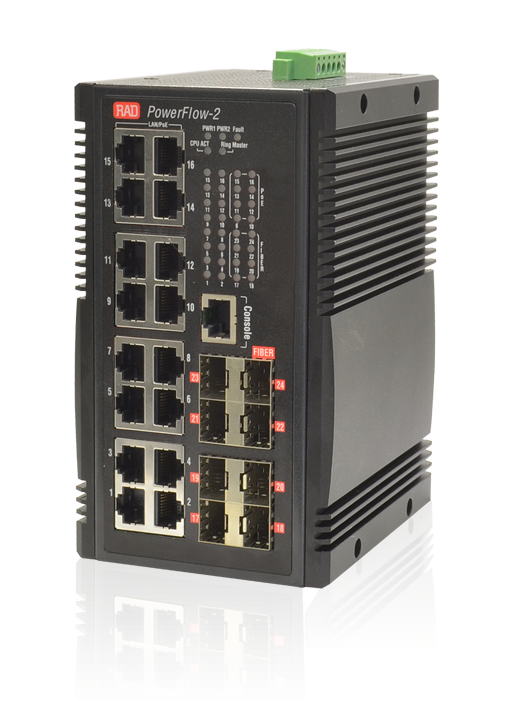

POWERFLOW

Managed Ruggedized Ethernet Switch with Power over Ethernet

The PowerFlow-2 consists of managed and unmanaged industrial-grade Gigabit Ethernet switches, designed to build packet-based operational networks for critical infrastructure.
PowerFlow-2 is ideal for operational networks of power utilities, railways, traffic controllers, and safe city applications requiring advanced Ethernet functionality and power over Ethernet (PoE) support.

Ordering Option

PowerFlow-2

• Up 16 x 10/100/1000BaseT ports
• Up to 8 x GbE SFP
• PoE support for up to 240W per device
• Optional PoE++ (UPoE)
• Interop with Airmux PoE
• Flexible deployment scenarios using MSTP, RSTP, ERPS (G.8032) and ultra-fast PowerFlow-ring recovery
• Security: Port-based and MAC-based IEEE802.1X, RADIUS, ACL, TACACS+, SSL/SSHv2
• IEEE 1588 Transparent Clock (TC)
• Resilient link with dual homing
• Wide-range DC power supply
• Extended temperature range
• Certified for IEC 61850-3, IEEE 1613, NEMA TS2, EN50121-4

PowerFlow-2-10G

• 4 x 10G/1G SFP
• Up 24 x 10/100/1000BaseT
• Up to 24 x GbE SFP
• 4 GbE combo port
• Optional PoE support for up to 400W per device
• Flexible deployment scenarios using MSTP, RSTP, ERPS (G.8032) and PowerFlow-Ring recovery), with up to 14 rings per device
• Security: Port-based and MAC-based IEEE802.1X, RADIUS, ACL, TACACS+, SSL/SSHv2
• IEEE 1588 Transparent Clock (TC)
• Resilient link with dual homing
• Redundant power supply AC or DC (or a combination)
• Extended Temperature range
• EN50121-4 Certified

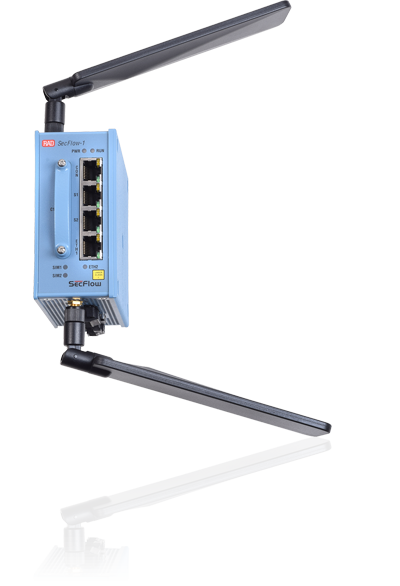

SECFLOW-1

Ruggedized SCADA-Aware Gateway

The compact SecFlow-1 is a ruggedized multiservice gateway, featuring built-in security mechanisms designed for applications controlling mission-critical operations.

SecFlow-1  is ideal for industrial loT backhaul, enabling fast, secure and economical deployment of new loT sites.

Allowing secure connectivity over wireless or fiber networks- either public (e.g., cellular) or private, it connects all types of industrial devices, including RTUs, smart meter aggregation devices, loT base stations or concentrators, CCTV cameras, point of sale devices, WiFi base stations, and more.

SecFlow-1 is also used for operational WANs, providing reliable and secure Layer 2, and Layer 3 communications for power utilities, water and gas utilities, public safety and homeland security agencies, as well as intelligent transportation operators.

Quick Specs

  • Multiservice support: Fast Ethernet/GbE, Serial RS-232/485
  • Connectivity to remote and isolated sites using a dual SIM cellular modem for 2G/3G/HSPA+/HSDPA/LTE uplink supporting flexible connectivity methods such as encrypted L3 DMVPN, IPsec VPN, L2 VPN, NAT
  • Advanced Ethernet and IP feature-set
  • Cyber security suite: 802.1X, IPsec encryption with automated PKI, ACL, stateful firewall
  • Serial protocol handling with transparent tunneling/protocol conversion/terminal server feature-set for IEC-60870-5-101, IEC-60870-5-104, Modbus RTU to Modbus TCP and DNP3.0 RTU to TCP
  • Complies with IEC-61850-3 and IEEE 1613
  • Form factor and functionalities address various installation needs for small stations, data collection sites and high density aggregation sites
  • Fault management and reporting, bulk software upgrade, and database management using RADview

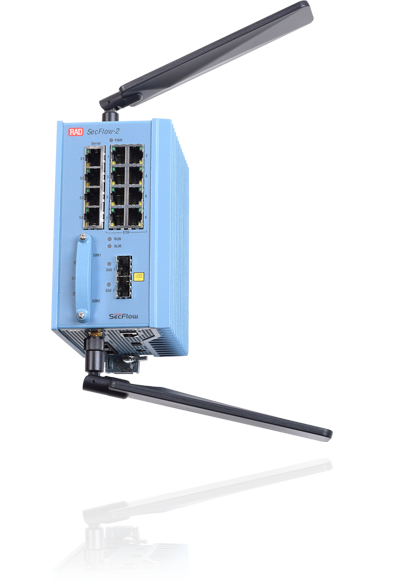

SECFLOW-2

Ruggedized SCADA-Aware Ethernet Switch/Router

The compact SecFlow-2 is a ruggedized Ethernet switch/router with built-in security mechanisms designed for applications controlling mission-critical operations

The SecFlow-2 is ideal for industrial loT backhaul, enabling fast, secure and economical deployment of new loT sites.

Allowing secure connectivity over wireless or fiber networks – either public RUTs, smart meter aggregation devices, loT base stations or concentrators, CCTV cameras, point of sale devices, WiFi base stations, and more.

SecFlow-2 is also used for operational WANs, providing reliable secure Layer 2 and Layer 3 communications for power utilities, water and gas utilities, public safety, and homeland security agencies, as well as intelligent transportation operators.



Quick Specs

  • Multiservice support: Fast Ethernet/GbE, Serial RS-232/485, Power over Ethernet (PoE)
  • Connectivity to remote and isolated sites using a dual SIM cellular modem for 2G/3G/HSPA+/HSDPA/LTE uplink supporting flexible connectivity methods such as encrypted L3 DMVPN, IPsec VPN, L2 VPN, NAT
  • Advanced Ethernet and IP feature-set
  • Cyber security suite: 802.1X, IPsec encryption with automated PKI, ACL, stateful firewall.
  • Serial protocol handling with transparent tunneling/protocol conversion/terminal server feature-set for IEC-60870-5-101, IEC-60870-5-104, Modbus RTU to Modbus TCP, and DNP3.0 RTU to TCP
  • Complies with IEC-61850-3 and IEEE 1613
  • Form factor and functionalities address various installation needs for small stations, data collection sites, and high density aggregation sites
  • Fault management and reporting, bulk software upgrade, and database management using RADview

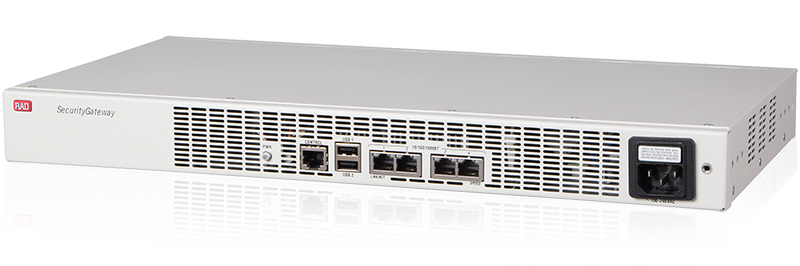

SECURITY GATEWAY

VPN Aggregator, Router and Firewall

SecurityGateway provides a small form-factor, yet powerful and cost-effective solution for aggregating traffic from multiple SecFlow devices in remote lloT sites. It is ideal for distributed automation in secondary substations, smart meter concentration, water resources management, and smart retail.

Quick Specs

  • Compact 19”, 1RU VPN aggregation device with high availability (optional)
  • Up to 1,000 concurrent, policy-based IPsec sessions
  • Static and dynamic routing
  • Secure by design with stateful firewall and Radius
  • Automated PKI (X.509) with integrated DNS resolver
  • IPv4 and IPv6 support
  • Intuitive, easy to use web-based UI
