Broadband Wireless


RAD’s Airmux line of point-to-point and point-to-multipoint broadband wireless radios deliver high capacity Ethernet and TDM services in various sub-6 GHz frequencies.

These state-of-the-art wireless access devices offer a multitude of benefits, including:
• Multi-band operation in a single device
• Robust air interface with unique interference mitigation and N-LOS operation
• Quality of service (QoS) and per-subscriber SLA guarantees
• Optimal performance and high spectral efficiency in dense radio environments
• Continuous service in motion with bi-directional, uninterrupted broadband connectivity on the move.


Point-to-Point Broadband Wireless Access

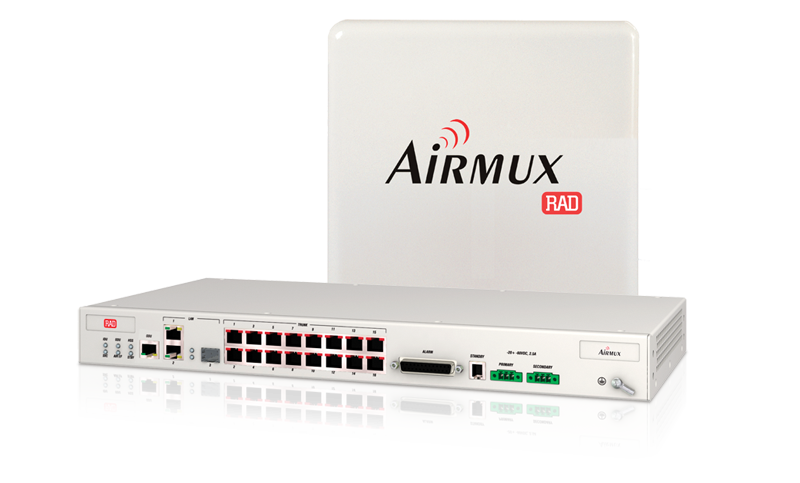

RAD’s Airmux-400 series of point-to-point broadband wireless radios deliver native Ethernet and TDM services over a single wireless link in various sub-6 GHz frequencies. With a flexible combination of Ethernet and up to 16 E1/T1 interfaces, the high capacity Airmux-400 radio systems provide aggregated throughput of up to 750 Mbps and a range of up to 120 km (75 miles).
The Airmux-400 radio systems incorporate advanced features, such as MIMO, OFDM, and high modulation schemes.


Quick Specs

• Multi-band operations over 2.3 to 2.5 GHz, 2.7 GHz, 3.5 GHz, and 4.8 to 6 GHz in a single device
• 5 MHz, 10 MHz, 20 MHz, 40 MHz, or 80 MHz channel bandwidth
• Up to 16 E1/T1 ports; up to two Gigabit Ethernet interfaces
• OFDM, MIMO, and antenna diversity capabilities
• Extended range – up to 120 km (75 miles)
• Hub-site synchronization (HSS) supports the simultaneous transmission from up to 16 colocated Airmux-400 and Airmux-5000 units
• Ring protection link (RPL) for Ethernet resiliency
• Spectral power measurement and RF survey tool – “Spectrum View” – for quick and easy installation
• Net throughput (aggregated):

- Airmux-400H: up to 750 Mbps
- Airmux-400Hi: up to 750 Mbps
- Airmux-400P: up to 250 Mbps
- Airmux-400L: up to 200 Mbps
- Airmux-400LC: up to 250 Mbps
- Airmux-400SP: up to 25 Mbps


Point-to-Multipoint Broadband Wireless Access

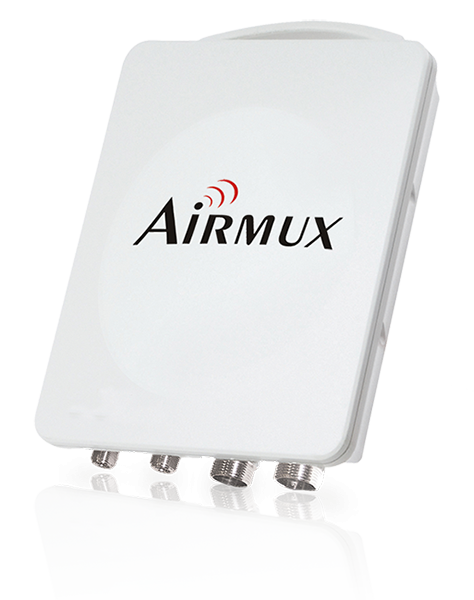

RAD’s Airmux-5000 point-to-multipoint broadband wireless radios are the ideal wireless solution for business users demanding high capacity throughput with dedicated traffic bandwidth allocation and service level agreement (SLA) per subscriber.

Featuring up to 750 Mbps aggregated sector capacity and a range of up to 40 km (25 miles), a single Airmux-5000 base station supports up to 64 remote subscriber units (SUs) with the multi-band operation, making it ideal for:

• Service providers and ISPs, offering IP backhaul and 4G/broadband access for remote, rural and underserved communities
• Private networks requiring high capacity inter-branch connectivity for university campuses, healthcare organizations, government institutions, large enterprises, and public establishments
• Security and surveillance applications requiring aggregation and backhaul of traffic from multiple located HD cameras.

Quick Specs

• Multi-band operation over 2.5 to 2.7 GHz, 3.3 to 3.8 GHz and 4.8 to 6.4 GHz in a single device
• Supports fixed and nomadic applications
• Airmux-5000i with a beamforming antenna
• 5 MHz, 10 MHz, 20 MHz, or 40 MHz channel bandwidth
• OFDM, MIMO, and antenna diversity capabilities
• Range up to 40 km (25 miles)
• Intra- and inter-site TDD synchronization using hub-site synchronization (HSS) and GPS
• Low constant latency – typically 4 to 10 msec in full sector load
